Scotch® 7000031580

Scotch® 7000031580 Electrical Maintenance Tape, 22 yd L 0.75 in W, 7 mil THK, Vinyl, Rubber Adhesive, PVC Backing, Brown

Select Your Options

Item ID: 7000031580
MPN: 7000031580
Sold As: 1 ROLL

Your Price:

Availability:
Estimated availability:
Average Lead Time:
Quantity:
Add to cart
Add to Shopping List

FEATURES
Documents
TECHNICAL SPECIFICATIONS
DESCRIPTION

The combination of the pressure-sensitive, rubber-resin adhesive and the PVC backing offers excellent electrical and mechanical protection
Flame-retardant and highly resistant to UV rays, abrasion, moisture, alkalis, solvents and many acids
Suitable for use in phase identification, color-coding of motor leads and piping systems and for marking safety areas
Withstands a temperature range of 14 to 221 deg F (-10 to 105 deg C)

Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scotch_7000057831_Catalog.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scotch_7000057831_User_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scotch_7000132637_Specification_Sheet.pdf

Adhesion Strength	20 in-oz
Adhesive Material	Rubber
Backing Material	PVC
Color	Brown
Dielectric Strength	600 V
Length	22 yd
Material Type	Vinyl
Maximum Operating Temperature	221 deg F
Minimum Operating Temperature	32 deg F
Specifications Met	CSA Certified/RoHS 211/65/EU/UL Listed/VDE 34-TEIL1
Tensile Strength	90 lb/in
Thickness	7 mil
Type	Electrical Maintenance
Voltage Rating	6 V
Width	0.75 in

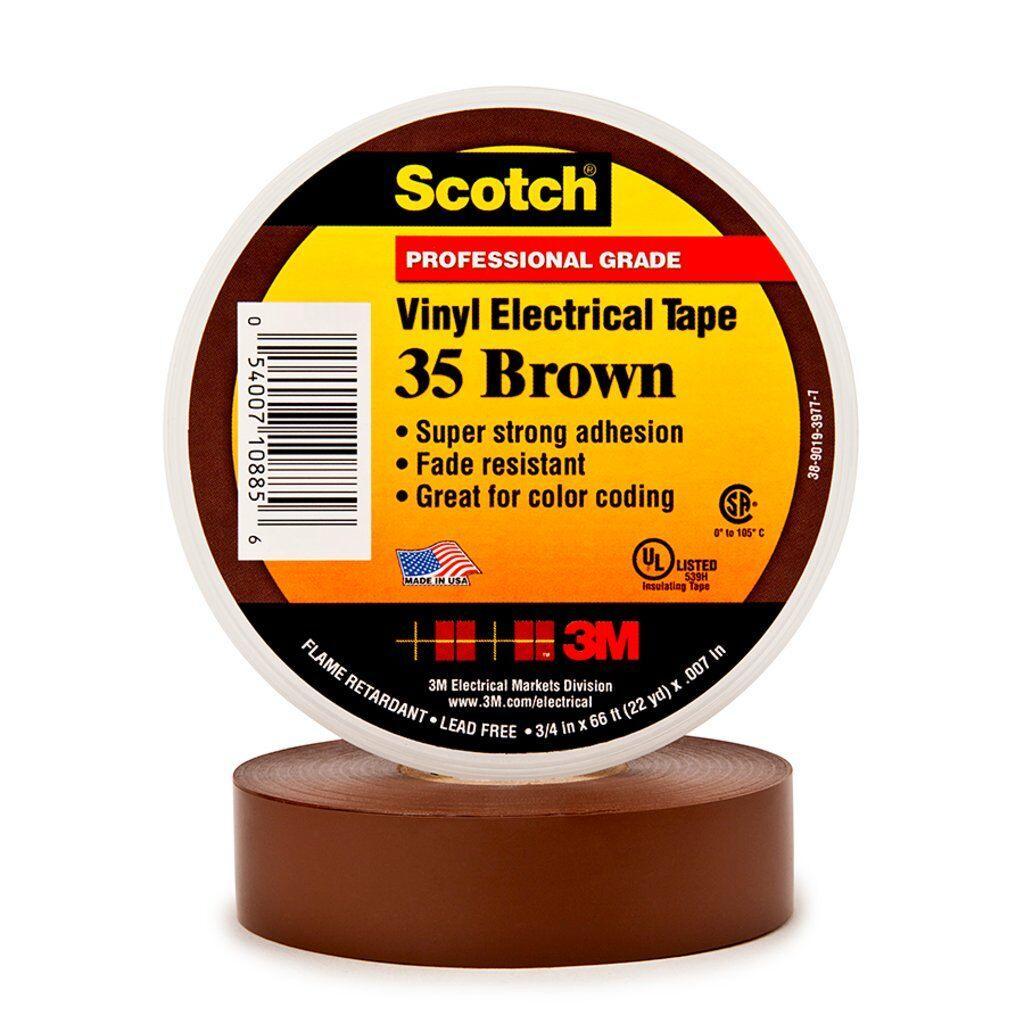

Scotch Vinyl Color Coding Electrical Tape 35 is a versatile, premium-grade marking solution for harsh and demanding electrical and mechanical applications. With a sturdy 7 mil (0.178 mm) thickness, this fade-resistant tape excels in wire and phase identification, motor lead color coding, piping system organization, and safety zone marking. Engineered for reliability, it handles applications up to 600V and endures temperatures from 14 °F to 221 °F (-10 °C to 105 °C), delivering consistent results when you need them the most. Its resistance to fading (the product in white is fully UV-resistant) and fluctuating weather conditions helps give long-lasting performance in a variety of residential, commercial, and industrial operations. Thanks to its robust combination of an aggressive, pressure-sensitive rubber-resin adhesive and a flexible PVC backing, the tape provides additional protection for LV/MV/HV joints and splices when used as an overwrap with rubber splicing and mastic tapes. Offering exceptional elasticity that conforms to virtually any shape, the tape is ideal for insulating electrical wires while also being compatible with synthetic cable insulations, jackets, and splicing compounds. The tape is flame retardant and meets the standards for UL 510 Listed, CSA C22.2 No.197 and VDE Mark Certificate no. 130462; Type 7: IEC 60454-3-1-7/F-PVCP/90 Certified, IEC 60454-3-1-7/F-PVCP/90, and RoHS Compliant. This product is available in 10 colors to meet your specific requirements. Experience the dependable environmental protection and performance of this tape.

Scotch®, 7000031580, Tape, Electrical Maintenance, 22 yd Length, 0.75 in Width, 7 mil Thickness, Vinyl, Brown, Rubber Adhesive, PVC Backing, 6 V, 600 V Dielectric Strength, 90 lb/in Tensile Strength, 221 deg F Maximum Operating, 32 deg F Minimum Operating, Specifications Met: CSA Certified/RoHS 211/65/EU/UL Listed/VDE 34-TEIL1
