Scotch® 7000006092

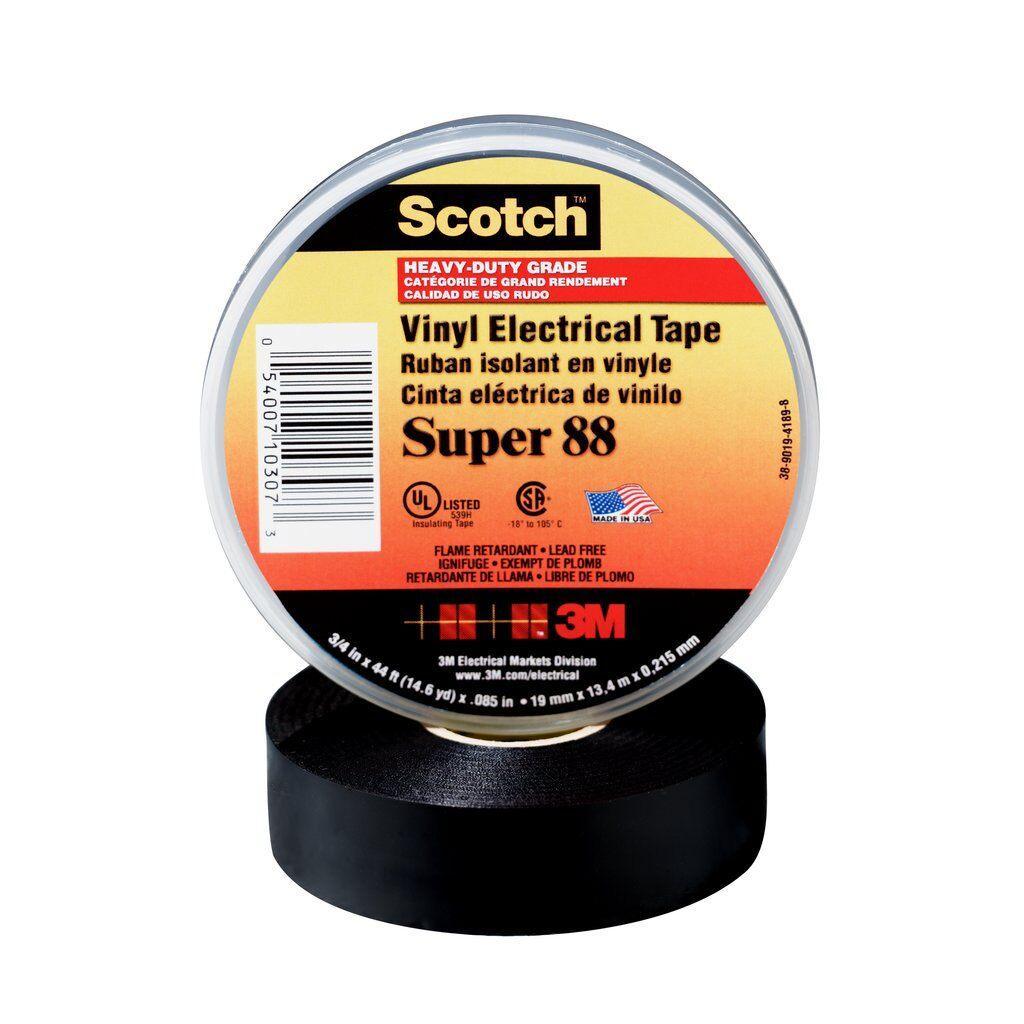

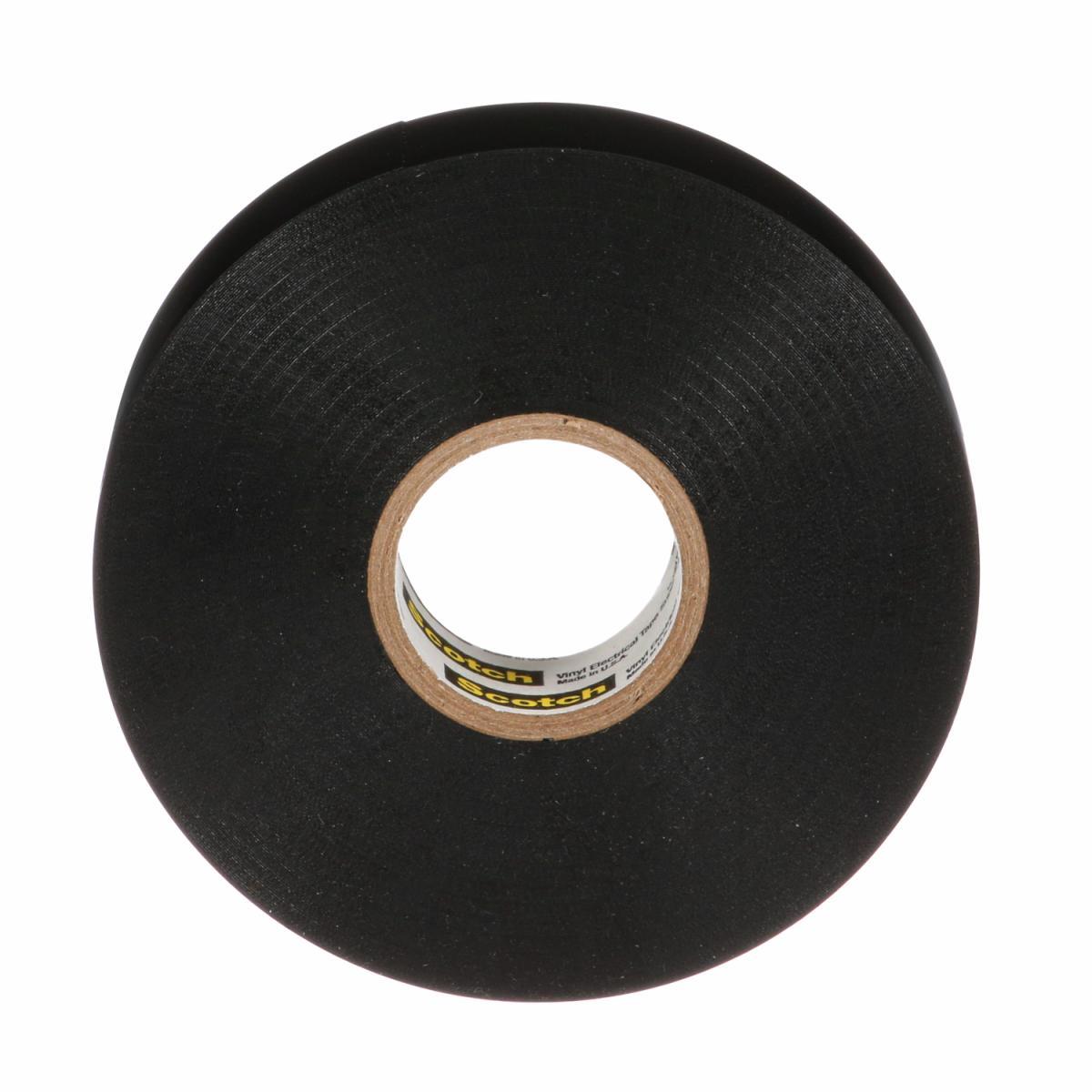

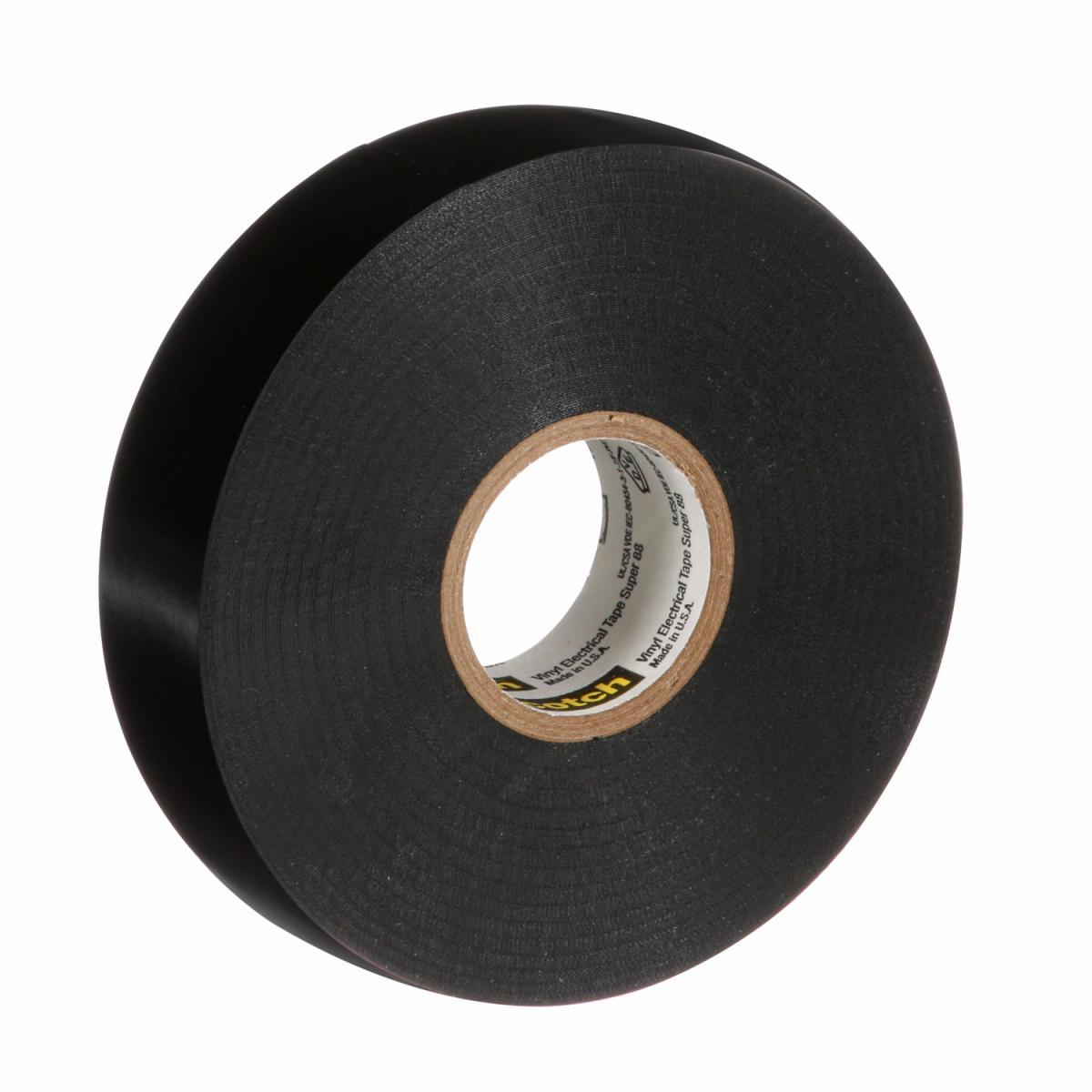

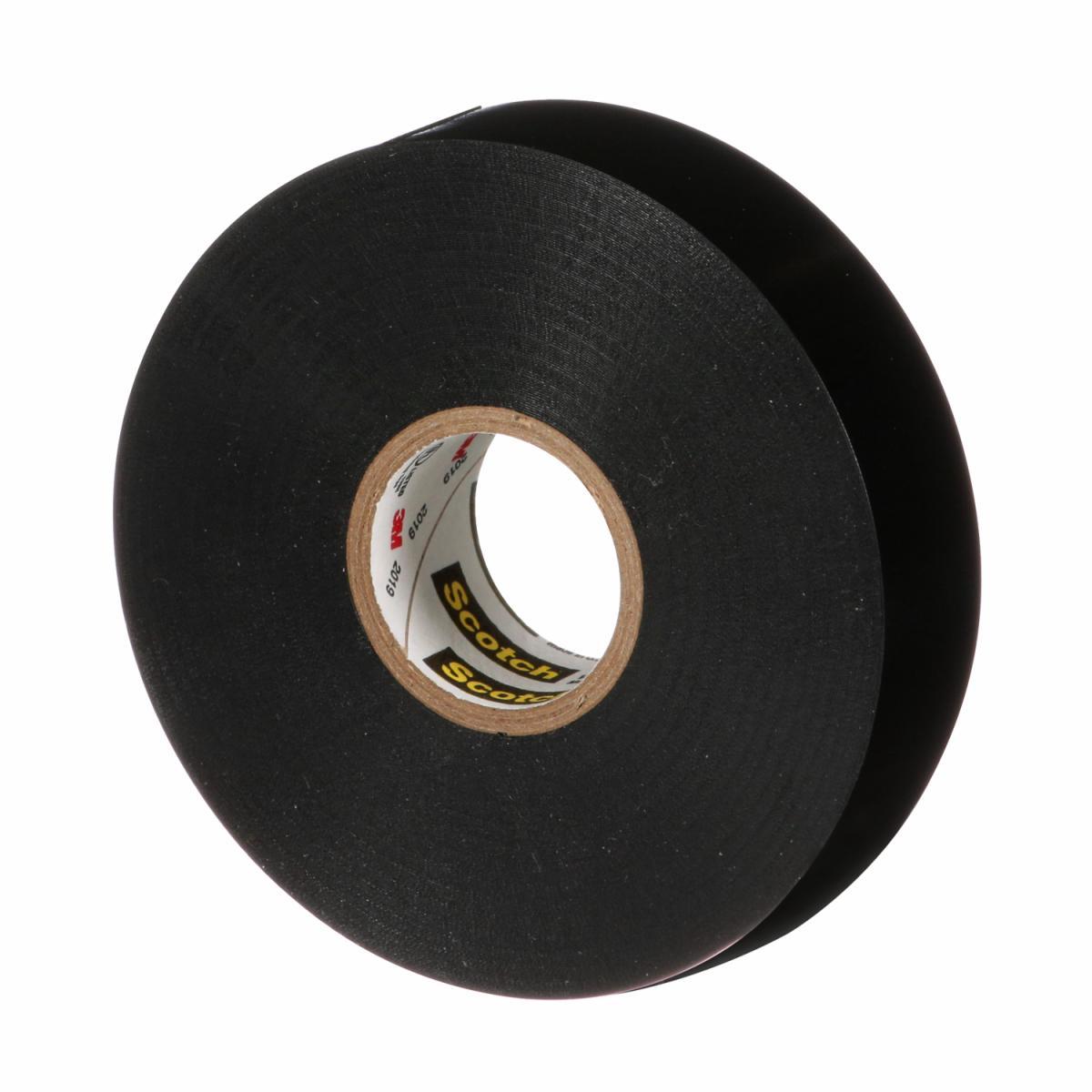

Scotch® 7000006092 88 Electrical Maintenance Tape, 22 yd L 0.75 in W, 8.5 mil THK, Rubber Adhesive, PVC Backing, Black

Select Your Options

Item ID: 7000006092
MPN: 7000006092
Sold As: 1 ROLL

Your Price:

Availability:
Estimated availability:
Average Lead Time:
Quantity:
Add to cart
Add to Shopping List

FEATURES
Documents
TECHNICAL SPECIFICATIONS
DESCRIPTION

FLAME-RETARDENT - Withstands a temperature range of 0 deg to 221 deg F (-18 deg to 105 deg C)
THICKER FOR HEAVY DUTY USE - Thicker while remaining conformable for a smooth wrap every time
HIGHLY COMPATIBLE - With solid dielectric cable insulations, rubber and synthetic splicing compounds as well as epoxy and polyurethane resins
PERMANENT INSULATION - Low voltage primary and secondary insulation, cable jacketing, mechanical protection and padding

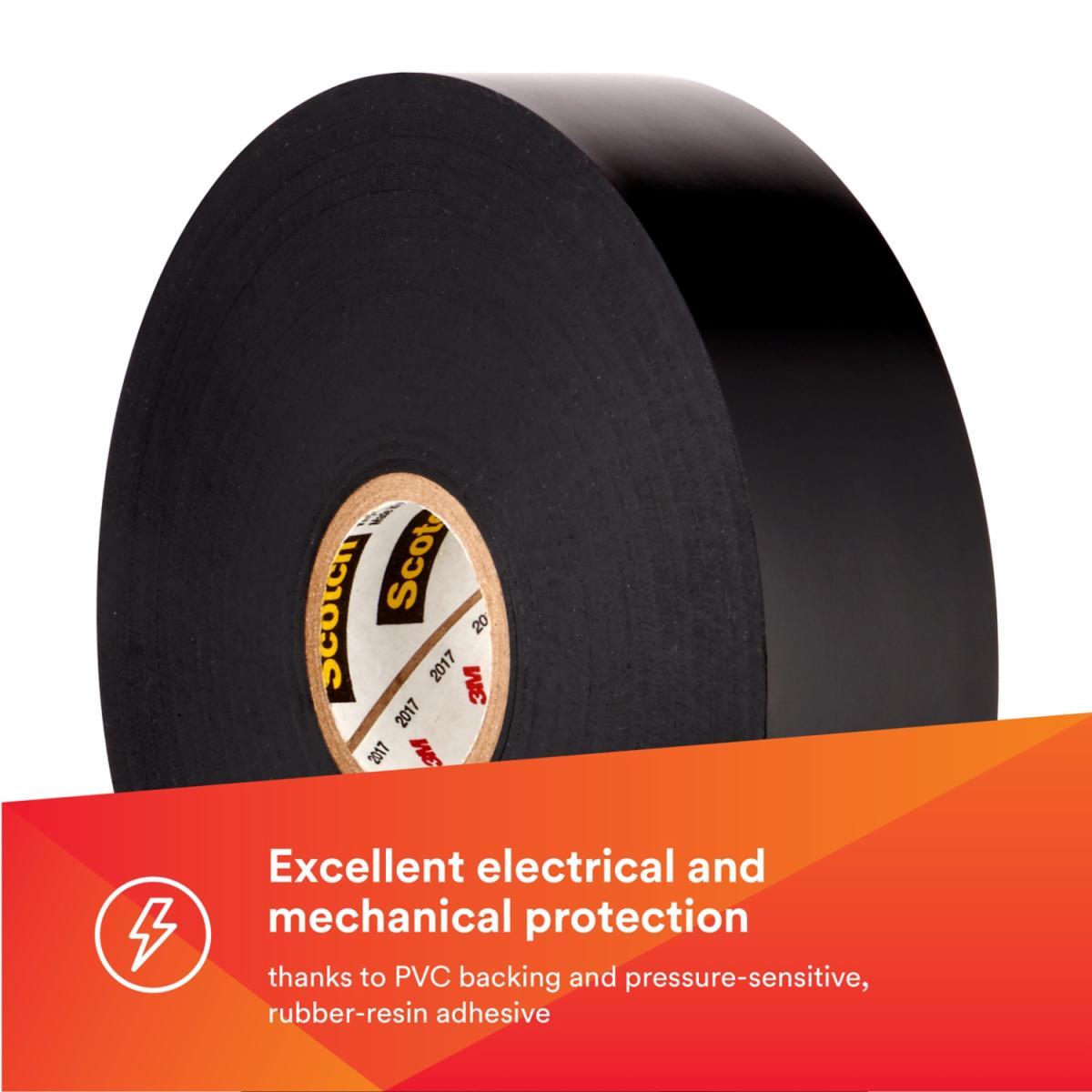

PRESSURE SENSITIVE ADHESIVE - Rubber-resin adhesive and PVC backing offers excellent electrical and mechanical protection

Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scotch_7000057831_Catalog.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scotch_7000057831_Technical_Bulletin.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scotch_7000057831_User_Manual.pdf

Adhesive Material	Rubber
Backing Material	PVC
Color	Black
Length	22 yd
Maximum Operating Temperature	221 deg F
Series	88
Specifications Met	ASTM D3005-99 Type II
Tensile Strength	35 N/10 mm
Thickness	8.5 mil
Type	Electrical Maintenance
Voltage Rating	6 V
Width	0.75 in

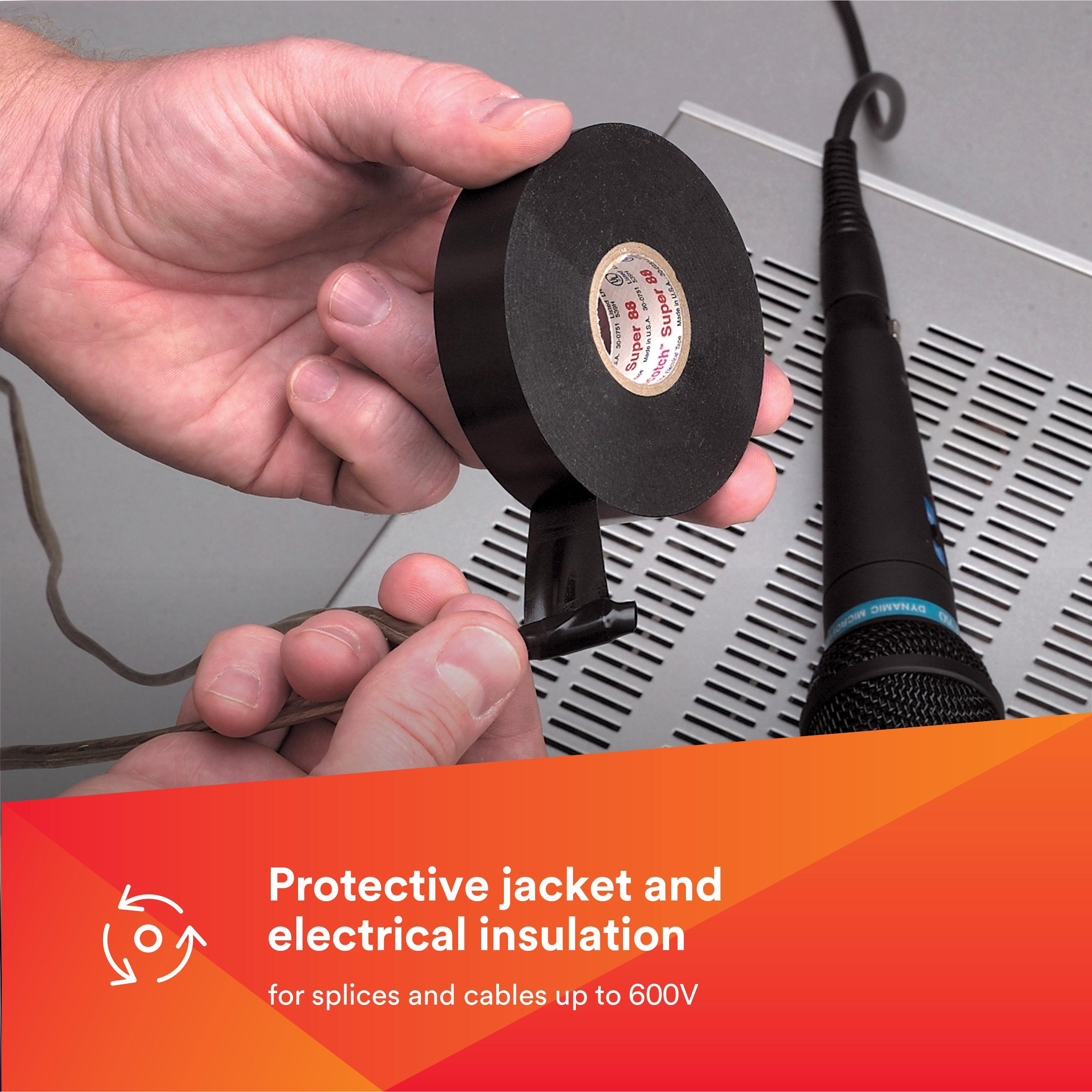

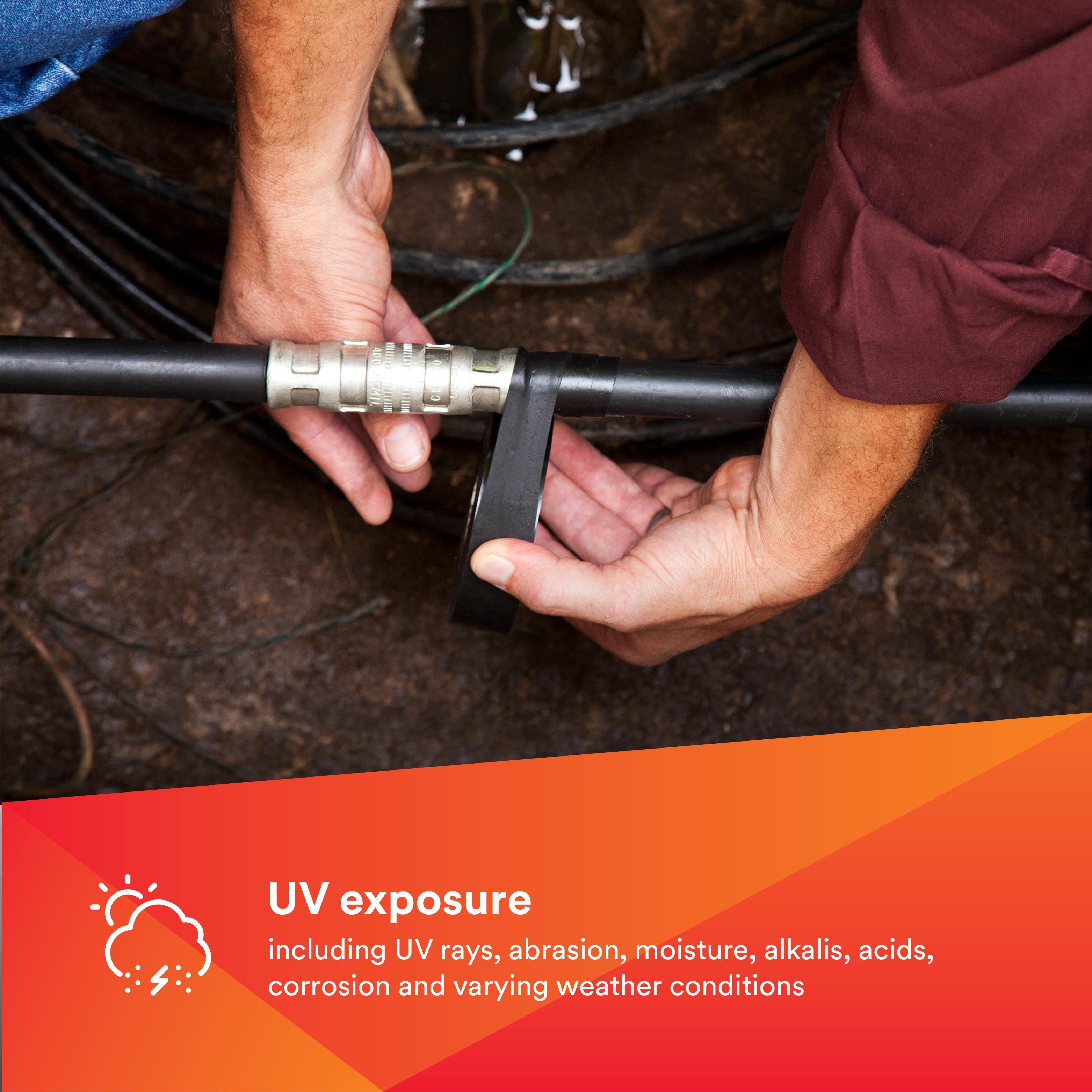

Scotch® Vinyl Electrical Tape Super 88 is an all-weather, premium-grade tape created to provide a protective jacket and primary electrical insulation for splices up to 600V, with a total thickness of 8.5 mil (0.216 mm) when applied. The thickness of the tape broadens the range of applications, particularly heavy-duty operations. This tape is engineered with pressure-sensitive rubber resin adhesive and elastic PVC backing, providing electrical and mechanical protection for a variety of applications. It is known for its strength and reliability, excelling in extreme indoor and outdoor conditions to help protect electrical conductors from UV exposure. Whether the application involves low-voltage primary or secondary insulation, cable jacketing, or mechanical protection and padding, Scotch® Vinyl Electrical Tape Super 88 offers excellent insulation and adhesion properties. Meeting the requirements for flame retardancy, the tape can be used within temperatures from 0 °F to 221 °F (-18 °C to 105 °C) and is UL 510 Listed, CSA C22.2 No.197 and VDE Mark Certificate no. 130462; Type 7: IEC 60454-3-1-7/F-PVCP/90, IEC 60454-3-1-7/F-PVCP/90 Certified, and RoHS Compliant. Discover this tape for reliable environmental protection and performance.

Scotch®, 7000006092, Tape, Electrical Maintenance, Series: 88, 22 yd Length, 0.75 in Width, 8.5 mil Thickness, Black, Rubber Adhesive, PVC Backing, 6 V, 35 N/10 mm Tensile Strength, 221 deg F Maximum Operating
