MSA 10118480

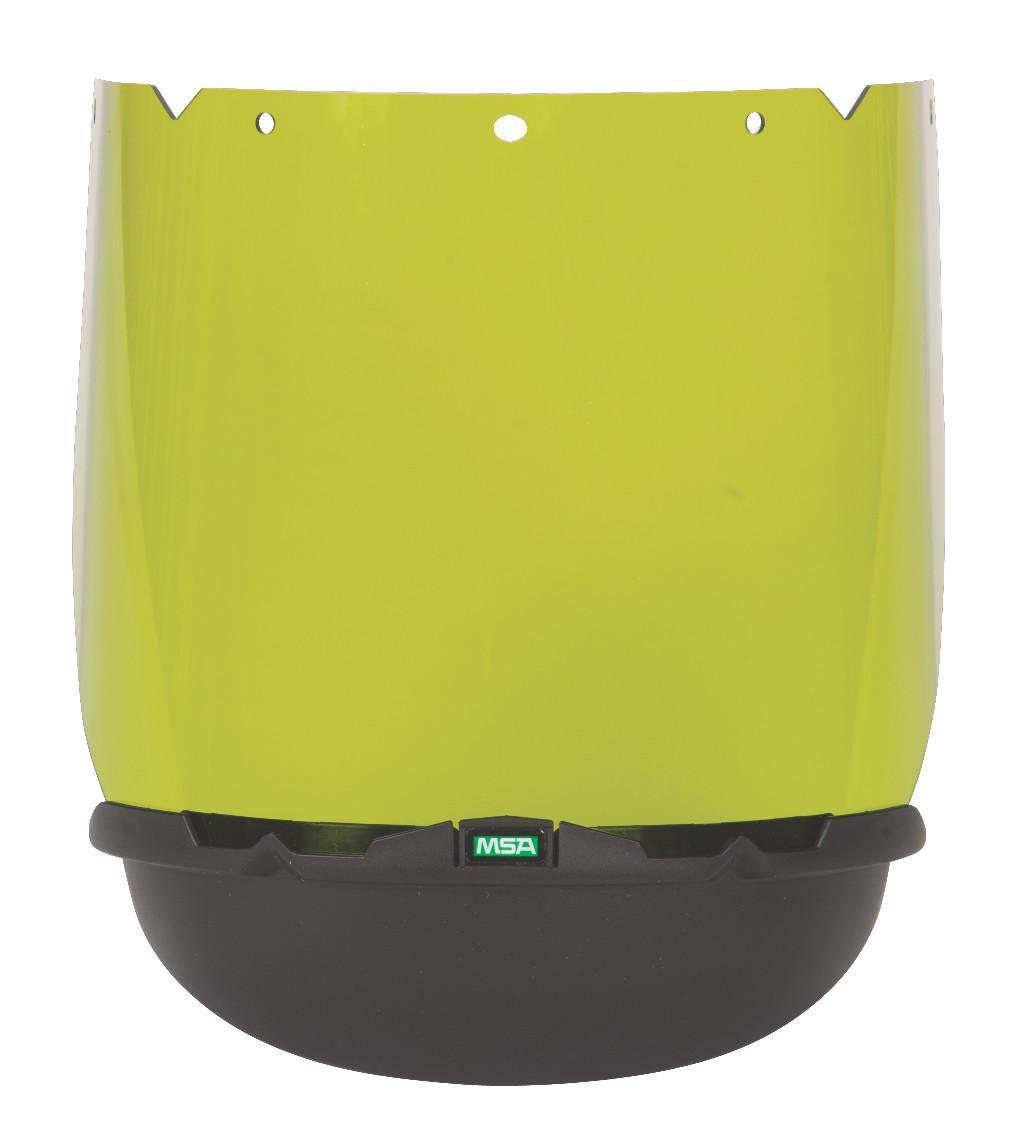

MSA V-Gard® 10118480 Arc Rated Molded Visor, Green, Polycarbonate, 8 in H x 17-1/4 in W x 0.065 in THK Visor, For Use With MSA V-Gard® Designated Chin Protector, ANSI/ISEA Z87.1-2010, ASTM F2178-2008

Select Your Options

Item ID: 10118480
MPN: 10118480
Sold As: EACH

Original Price: 175.47

Sale Price:

Availability:
Estimated availability:
Average Lead Time:
Quantity:
Add to cart
Add to Shopping List

FEATURES
Documents
TECHNICAL SPECIFICATIONS
DESCRIPTION

Impact-rated protection

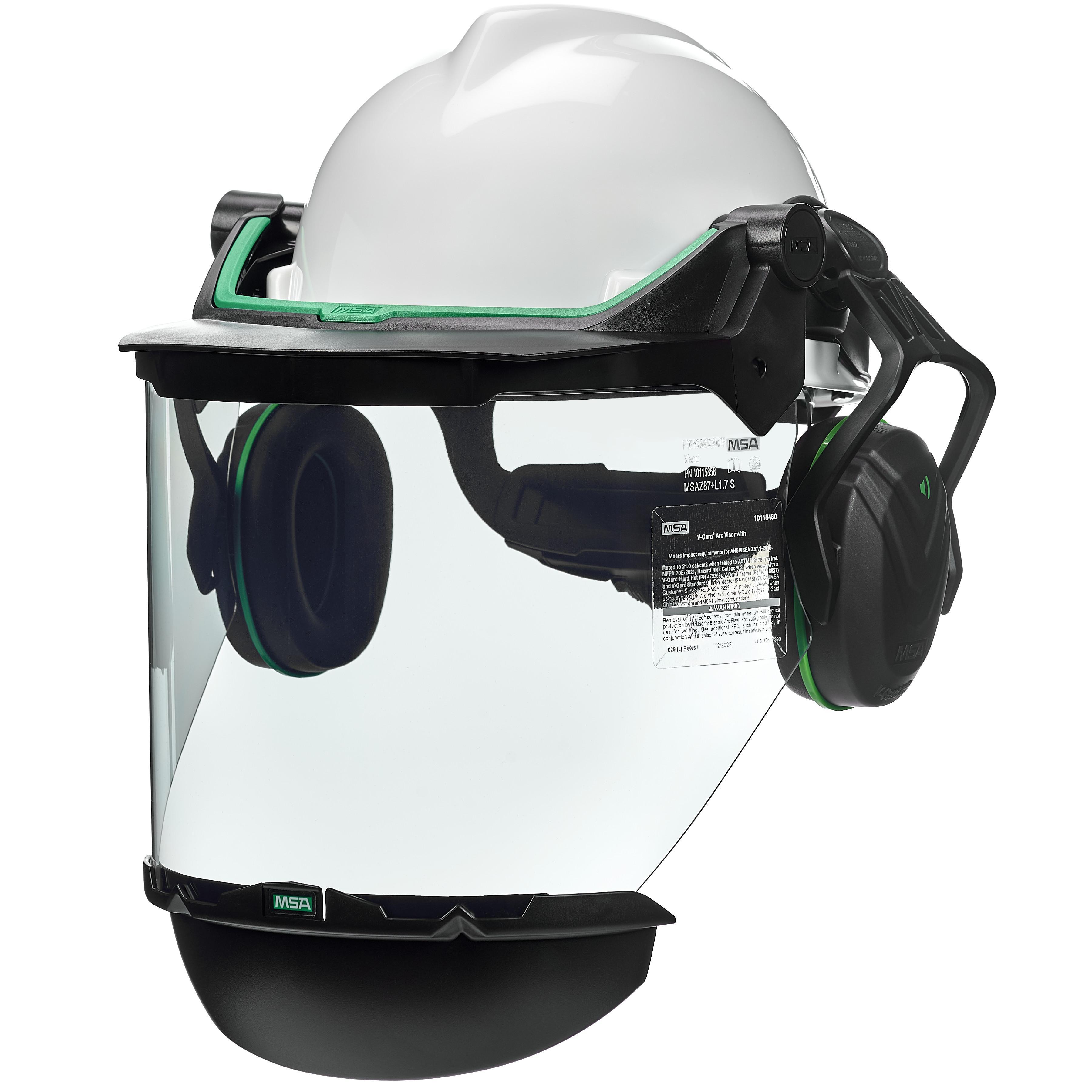

Part number 10118480 Includes V-Gard Standard Chin Protector (required to achieve arc rating) and must be assembled onto visor by user - dimensions - 8 in (20.3 cm) x 17.25 in (43.8 cm) x .065 in (1.7 mm) + 3.02 in (7.7 cm ) (chin protector length)

Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/MSA_10115850_Installation_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/MSA_10115850_Specification_Sheet.pdf
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/MSA_10127065_Catalog.pdf
SDS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/MSA_10127065_SDS.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/MSA_10127065_Technical_Bulletin.pdf

ATPV Rating	11.3 cal/sq-cm
Color	Green
Material	Polycarbonate
Specifications Met	ANSI/ISEA Z87.1-2010, ASTM F2178-2008
Suitable For Use With	V-Gard® Designated Chin Protector
Type	Arc Rated Molded
Visor Height	8 in
Visor Thickness	0.065 in
Visor Width	17-1/4 in

These PC visors are engineered to help protect against impact and dangerous arc flash hazards. They are perfect for electrical workers and electricians working with high-voltage connections. Note: V-Gard Arc Visors are intended to be used only with dielectric frames and helmets.

MSA V-Gard® Visor, Arc Rated Molded, Green, Polycarbonate, 11.3 cal/sq-cm ATPV, 0.065 in Visor Thickness, 8 in Visor Height, 17-1/4 in Visor Width, For Use With: MSA V-Gard® Designated Chin Protector, Specifications Met: ANSI/ISEA Z87.1-2010, ASTM F2178-2008
