EATON V48M28T15CUEES6

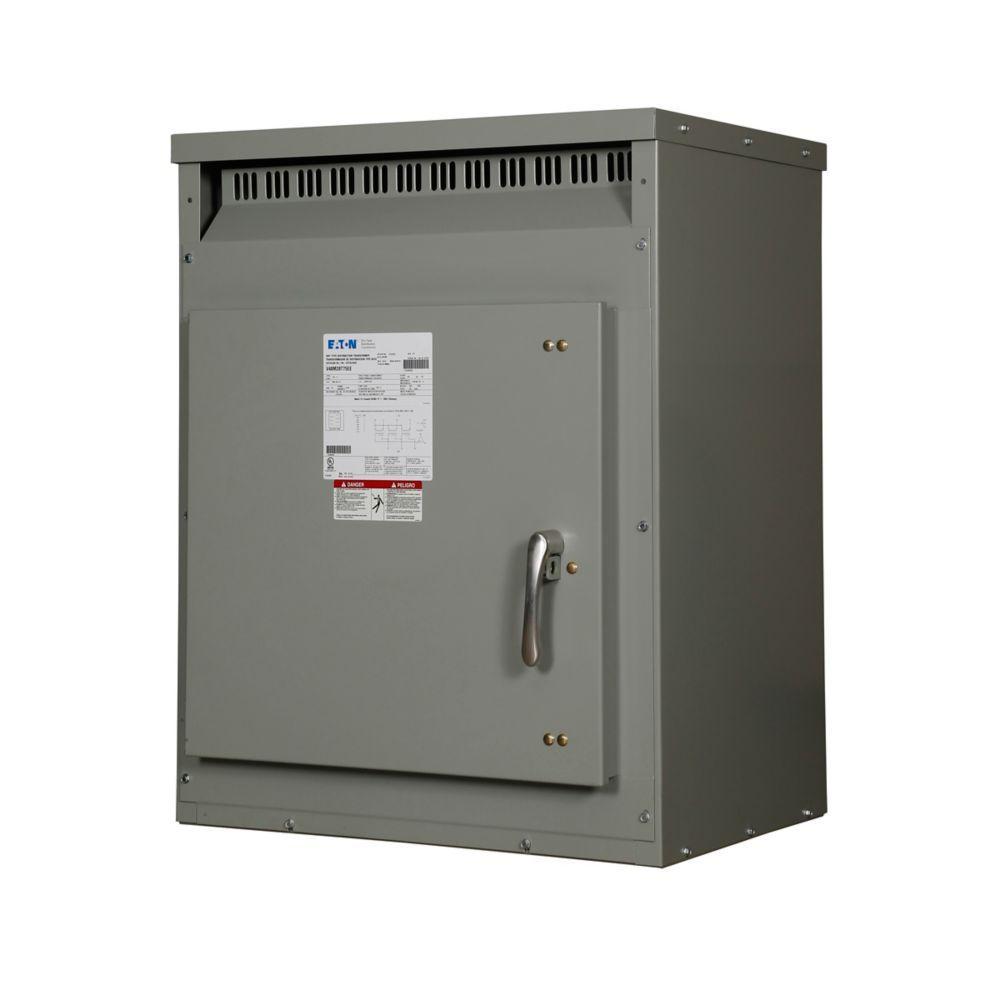

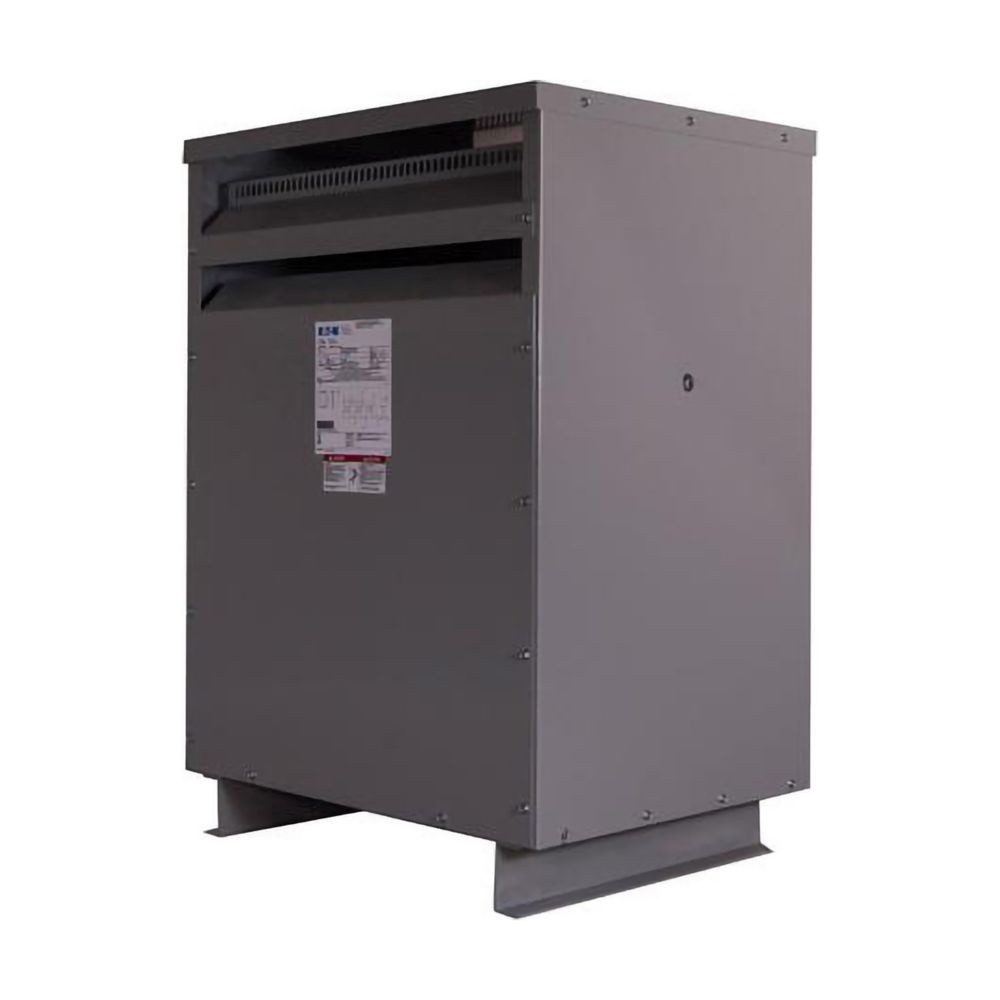

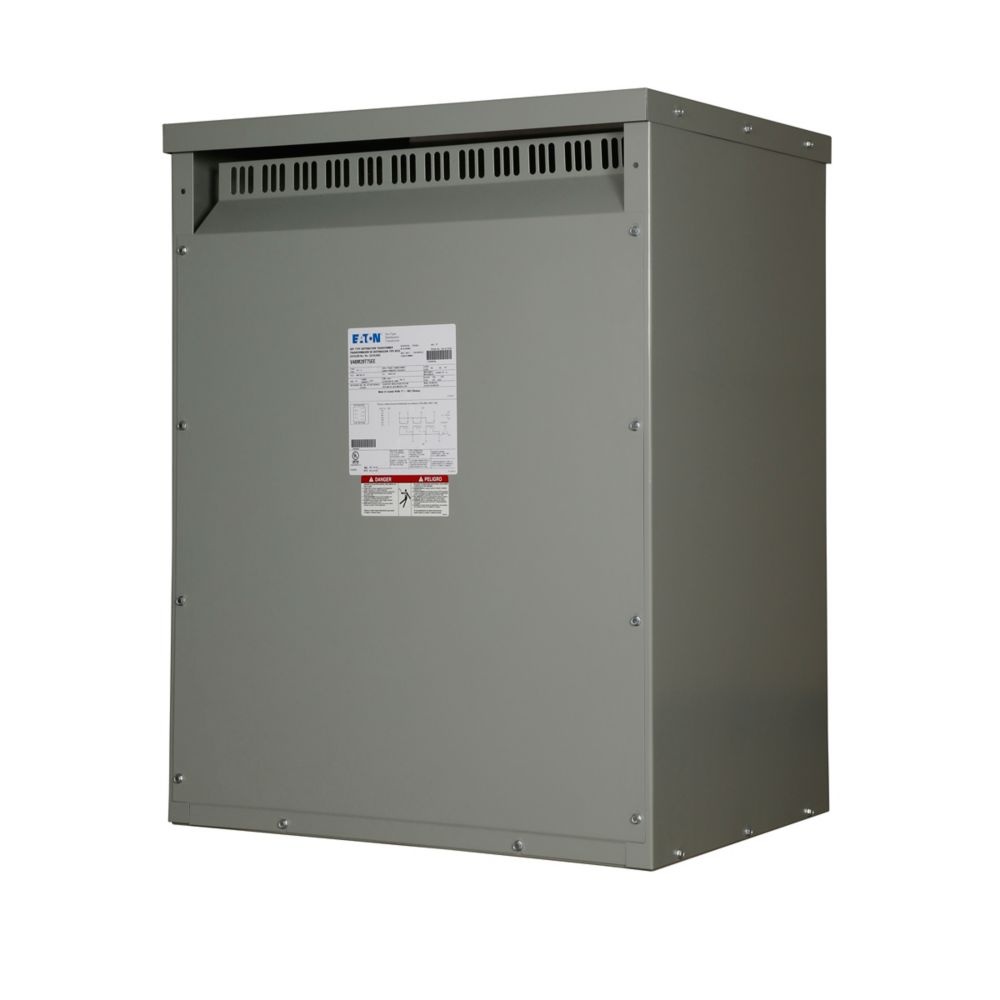

EATON V48M28T15CUEES6 Type DT-3 General Purpose Ventilated Transformer, 480 V Primary, 208Y/120 V Secondary, 15 kVA Power Rating, 60 Hz, 3 Phase

Select Your Options

Item ID: 1429283
MPN: V48M28T15CUEES6
Sold As: EACH

Your Price:

Availability:
Estimated availability:
Average Lead Time:
Quantity:
Add to cart
Add to Shopping List

FEATURES
Documents
TECHNICAL SPECIFICATIONS
DESCRIPTION

Includes transformers with DOE 2016 and NEMA TP-1 efficiency requirements and transformers with other efficiency requirements
Transformers include a versatile bonding/grounding bar affixed to the bottom panel as standard, to provide compliance with NEC 450.10(A)
Grade 316 stainless steel enclosure (does not imply NEMA 4X rating)
Copper winding

Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_DH321FGKJ_User_Manual.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_V38M28T22A_Technical_Bulletin.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_V48M28T15CUEES6_Specification_Sheet.pdf

Dimensions	16-1/2 in L x 23 in W x 30 in H
Enclosure Type	NEMA 2
Frequency Rating	60 Hz
Insulation	220 deg C
Number of Taps	2 at +2.5%/4 at -2.5%
Phase	3
Power Rating	15 kVA
Primary Voltage	480 V
Secondary Voltage	208Y/120 V
Temperature Rating	150 deg C
Type	Type DT-3 General Purpose

Eaton types DS-3 (single-phase) and DT-3 (three-phase) general purpose ventilated dry-type transformers are two-winding, self-cooled, and available in a wide variety of primary and secondary voltage combinations. General purpose transformers are designed for continuous operation at rated kVA. They are designed, manufactured and tested in accordance with all of the latest applicable ANSI, NEMA and IEEE standards.

EATON Ventilated Transformer, Type DT-3 General Purpose, 480 V Primary, 208Y/120 V Secondary, 15 kVA, 60 Hz, 3 ph, 2 at +2.5%/4 at -2.5% Taps, 220 deg C, NEMA 2, 150 deg C, 16-1/2 in L x 23 in W x 30 in H
