3M™ DBI-SALA® 7100314328

3M™ DBI-SALA® 7100314328 M100 Adjustable Mast Anchor, 20 ft H, 310 lb Load

Select Your Options

Item ID: 8530875
MPN: 7100314328
Sold As: EACH

Your Price:

Availability:
Estimated availability:
Average Lead Time:
Quantity:
Add to cart
Add to Shopping List

FEATURES
Documents
TECHNICAL SPECIFICATIONS
DESCRIPTION

Powder coated steel upright and gusset components
Extended rail-length increases safe working area compared to our previous jib systems
Automatic mast lock helps prevent uncontrolled mast movement
Aluminum extruded trolley rail with stainless steel / nylon trolley construction
Rotating mast up to 360 deg with flip-up rotation handle
Permanent and portable mounted designs available
Power assisted height adjustment capability for adjustable models
Leveling jacks standard on the M100 with integrated fork pockets for transporting and positioning using industrial forklifts
Additional system mobility with optional caster wheel kit

Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/3M_DBI_SALA_7100306797_User_Manual.pdf

Height	20 ft
Load Capacity	310 lb
Material	Steel
Offset	7.5 ft
Series	M100
Type	Adjustable

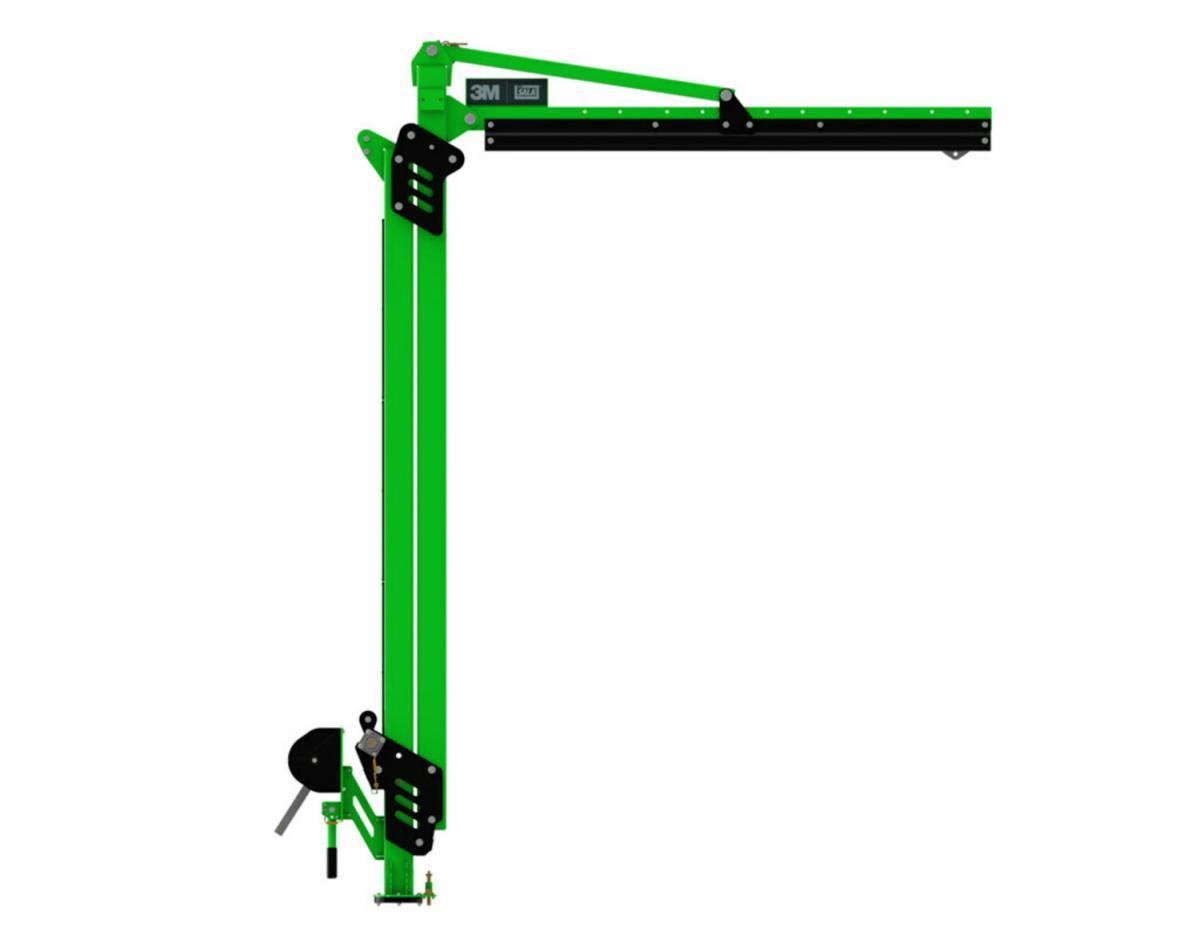

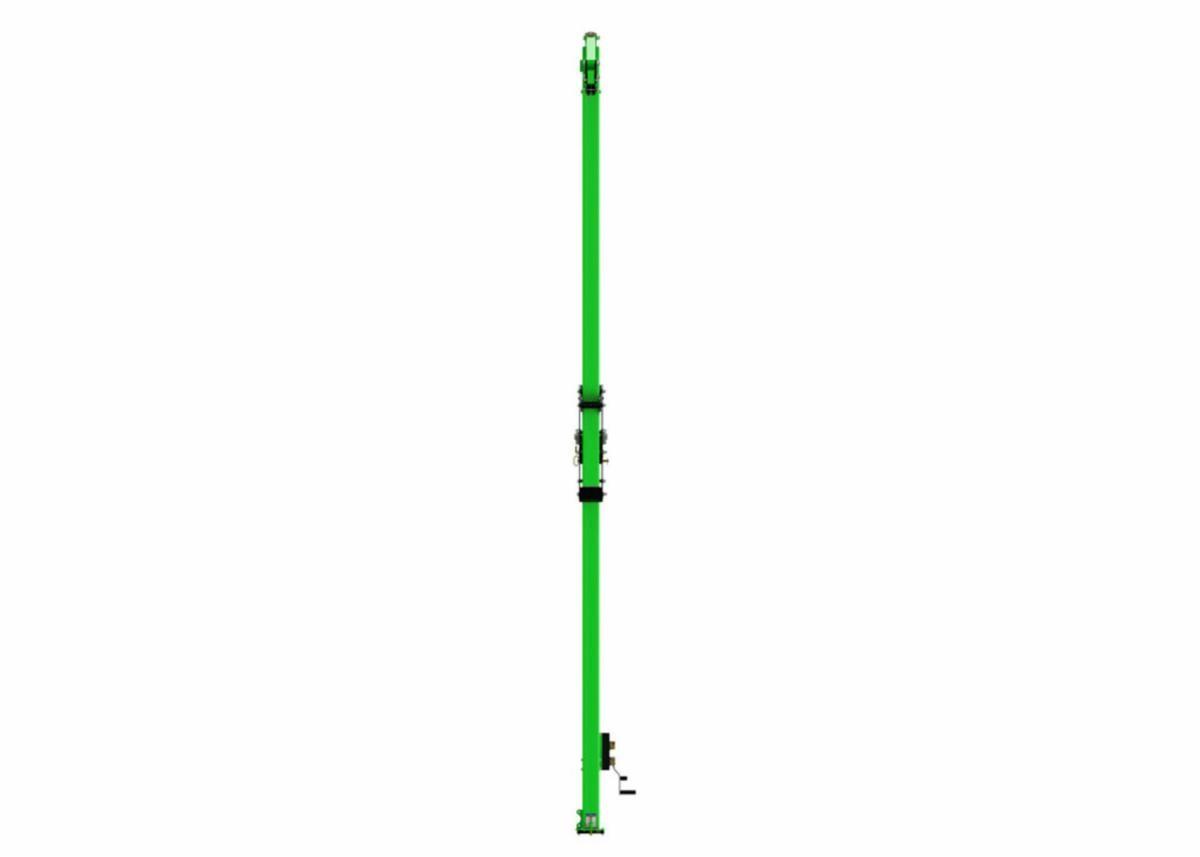

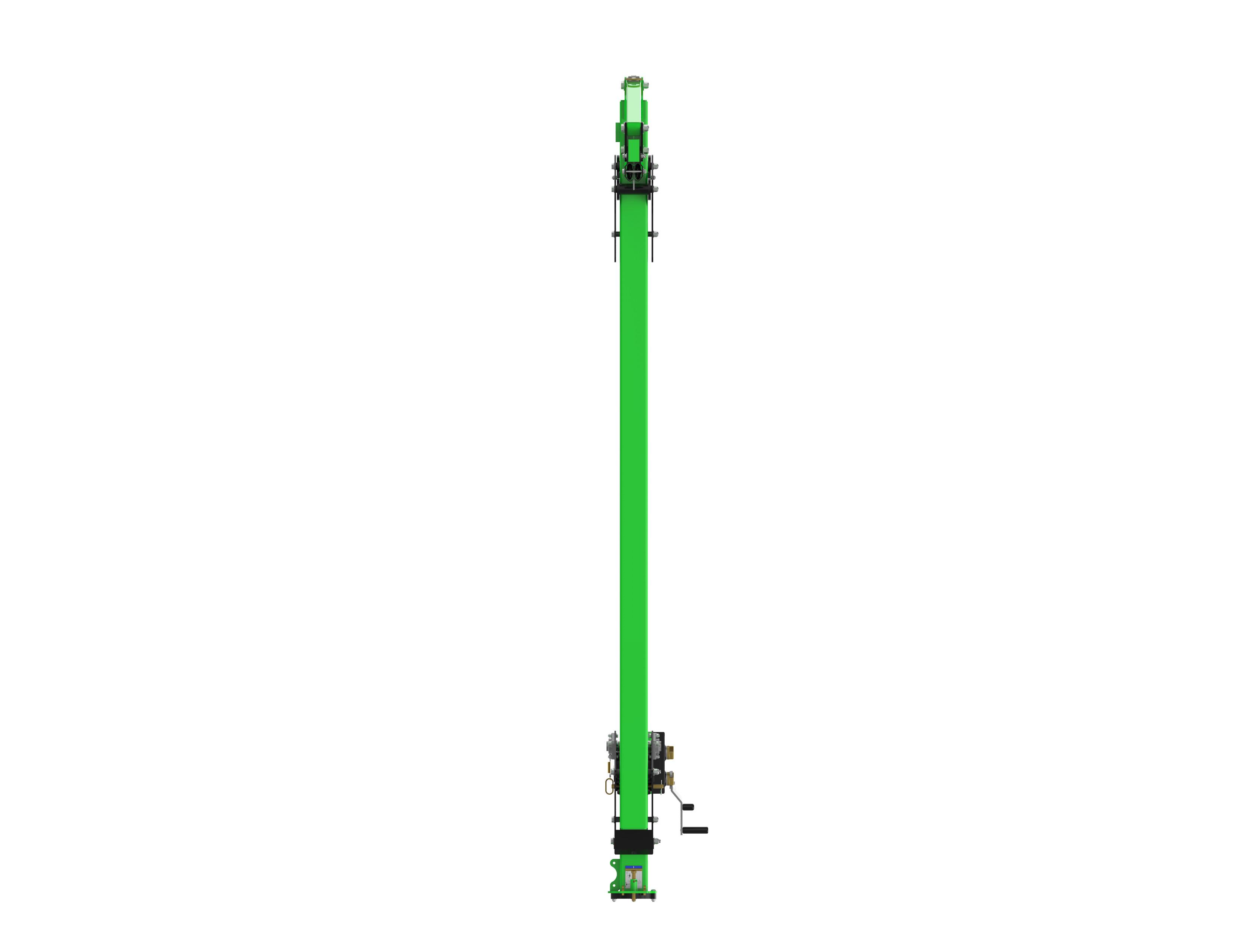

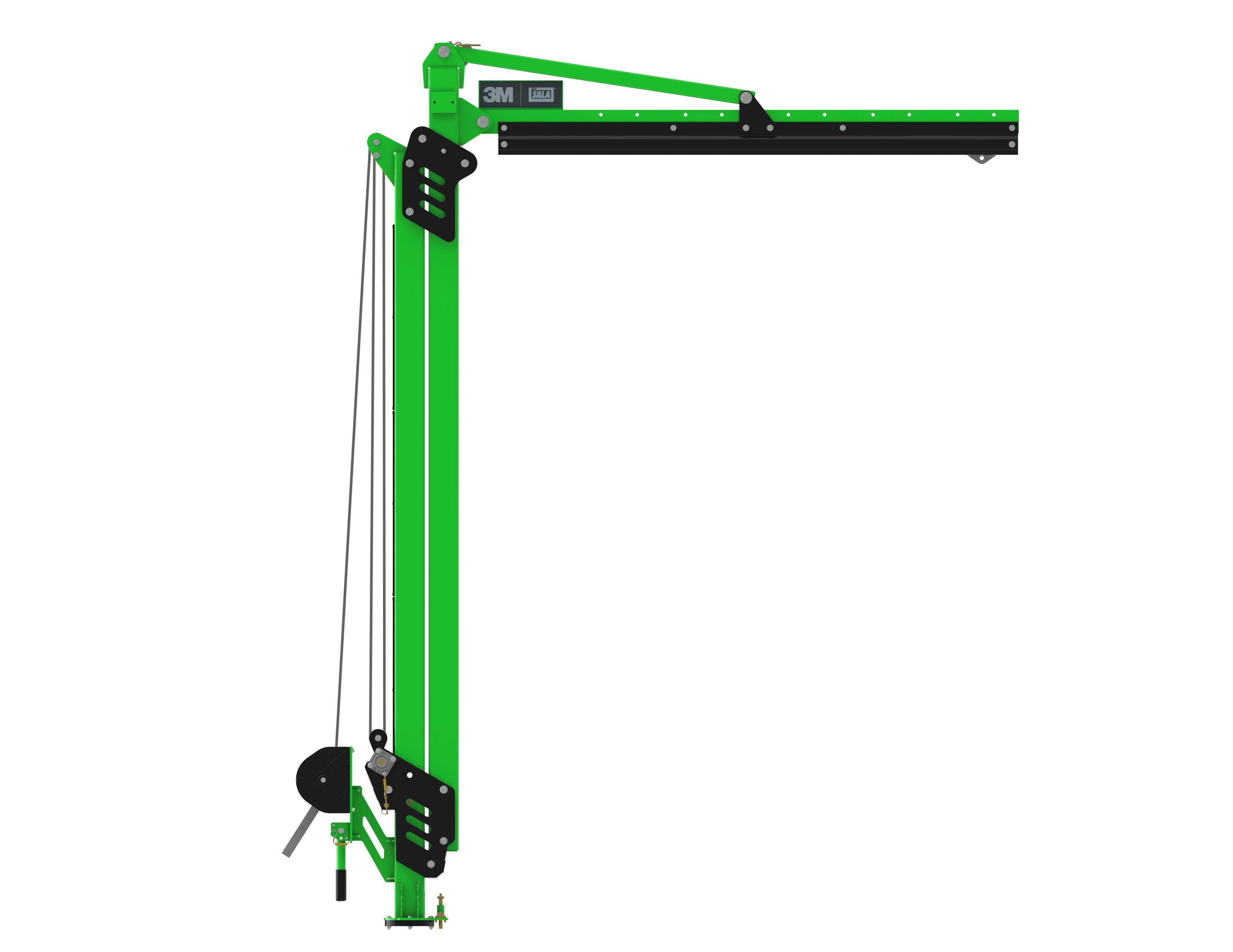

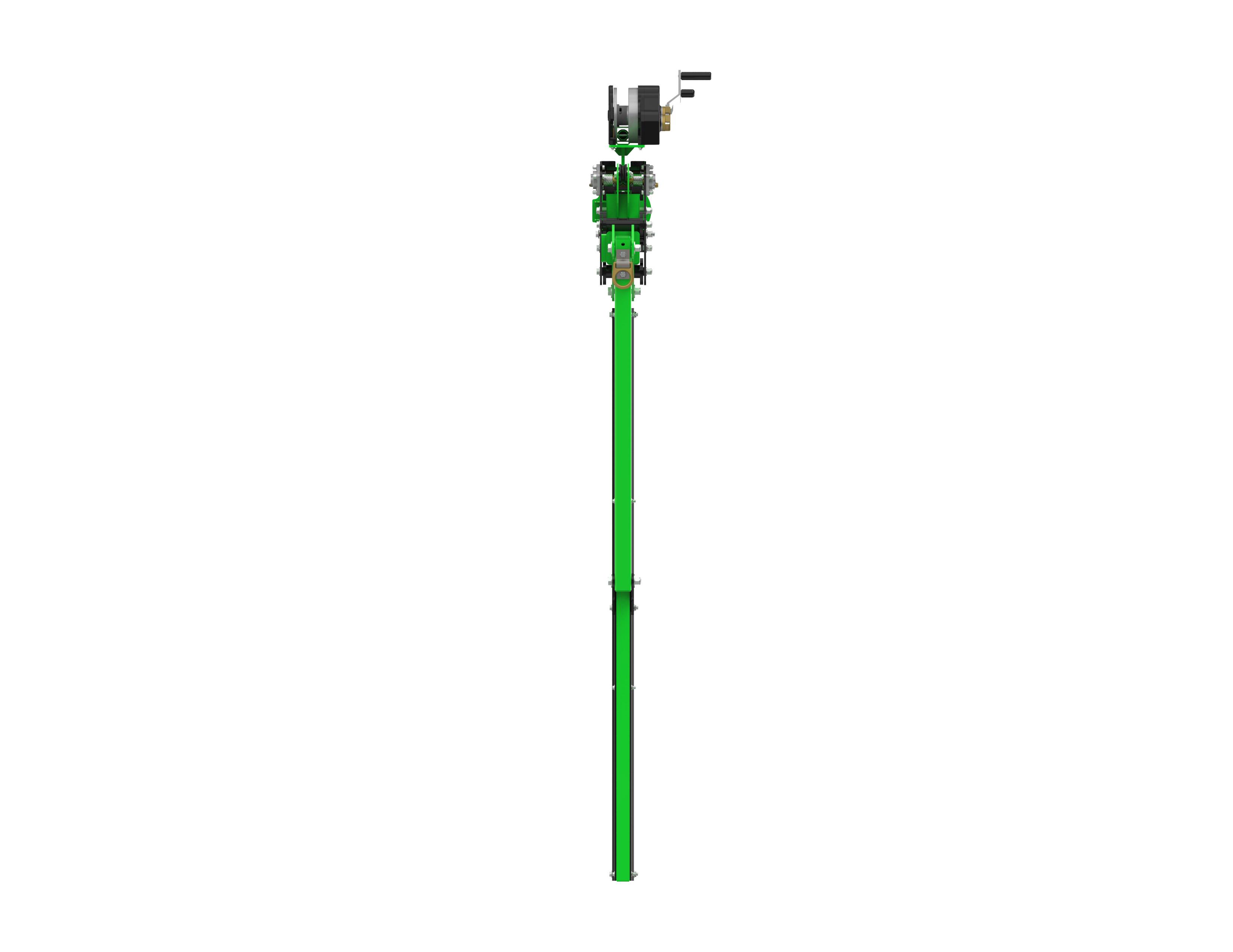

The 3M™ DBI-SALA® Flexiguard™ Modular Jib System is comprised of a modular set of components that when properly configured constitute a unique overhead anchorage system. The 3M™ DBI-SALA® FlexiGuard™ M100 Adjustable Height Mast is built with powder coated steel. The fully height adjustable design allows for maximum transportability and adaptation to unique work environments. Adjustment of the system can be accomplished manually with integrated winching handle, or up to 4 times faster using optional power drill overload clutch adapter.

3M™ DBI-SALA®, 7100314328, Mast Anchor, Adjustable, Series: M100, 20 ft Height, 7.5 ft Offset, Steel, 310 lb Load
