3M™ DBI-SALA® 7100225832

3M™ DBI-SALA® 7100225832 R550 Controlled Descent Positioning Device, 620 lb Weight Capacity, Kernmantle Line, Aluminum Hardware, ANSI/ASSP Z359.9-2021, CSA Z259.2.3-12

Select Your Options

Item ID: 3327200
MPN: 7100225832
Sold As: 1/CS

Your Price:

Availability:
Estimated availability:
Average Lead Time:
Quantity:
Add to cart
Add to Shopping List

FEATURES
Documents
TECHNICAL SPECIFICATIONS
DESCRIPTION

Fast and simple detent-style mounting of R550 to bracket
Built-in adjustment handle for various rung spacing
Powder-coated steel construction for durability and strength
2.5 lb (1.1 kg) bracket with 310 lb (140.6 kg) weight capacity
Rescue wheel available on some models
Constructed of Supertough nylon, this rescue wheel is ergonomically designed to provide control and reliability
External humidity indicator allows user to inspect the seal without opening case

3M Disclaimer.pdf https://my.arbill.com//ASSETS/DOCUMENTS/ITEMS/EN/3M Disclaimer.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/3M_DBI_SALA_7100157030_Specification_Sheet.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/3M_DBI_SALA_7100225832_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/3M_DBI_SALA_7100225832_User_Manual.pdf

Cable Diameter	3/8 in
Color	Yellow
Hardware Material	Aluminum
Length	200 ft
Line Material	Kernmantle
Series	R550
Specifications Met	ANSI/ASSP Z359.9-2021, CSA Z259.2.3-12
Type	Controlled Descent
Weight Capacity	620 lb

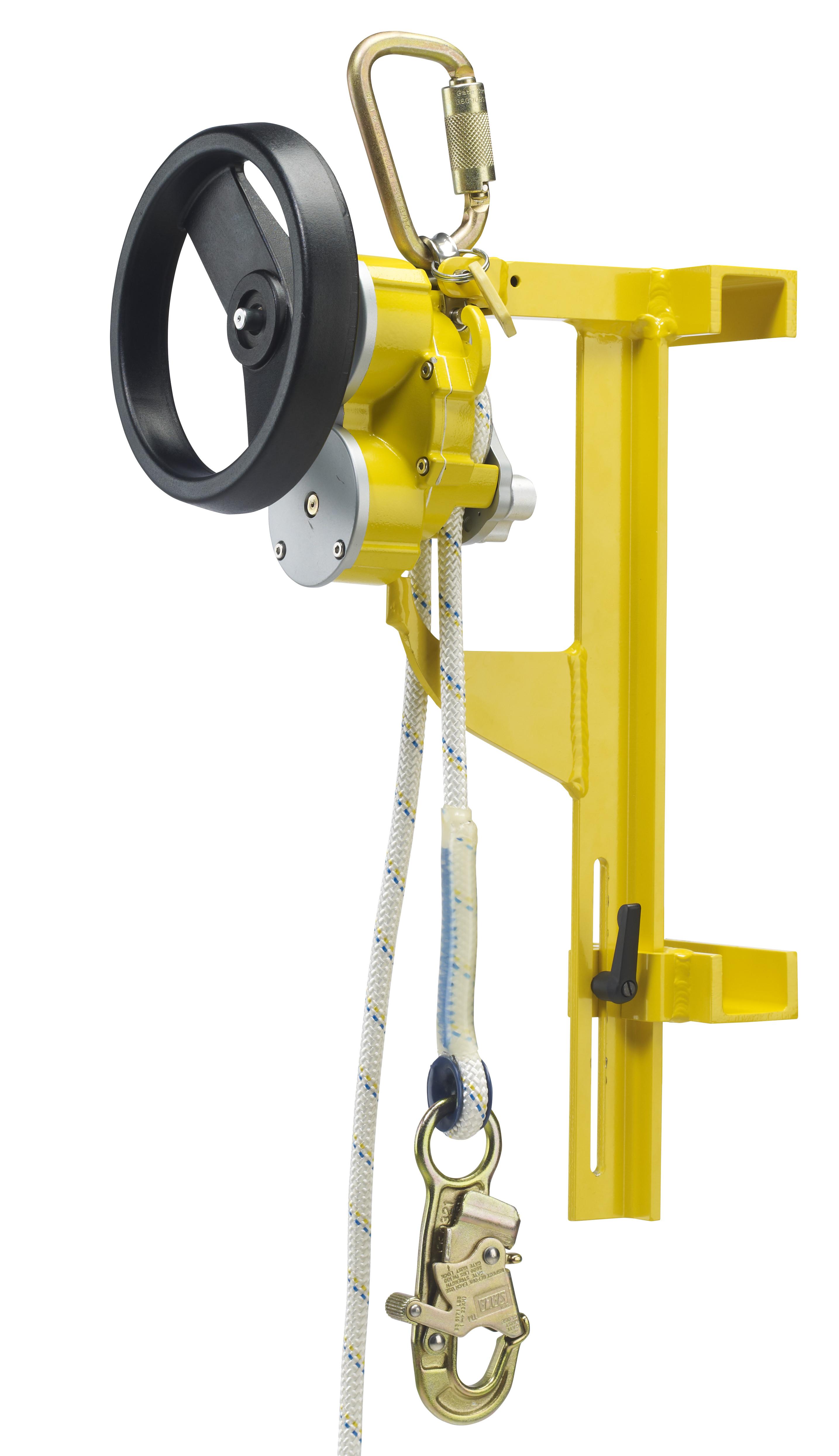

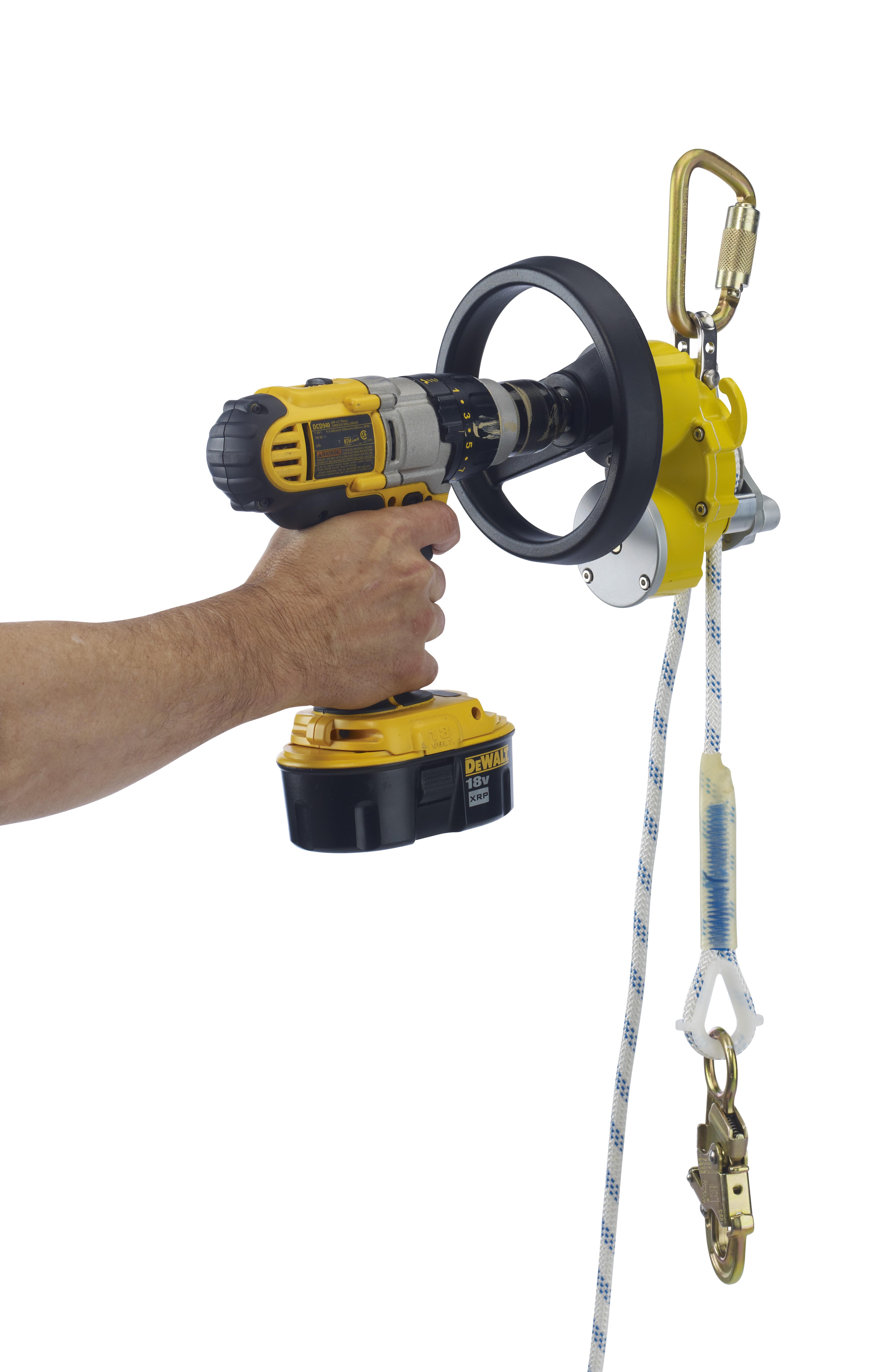

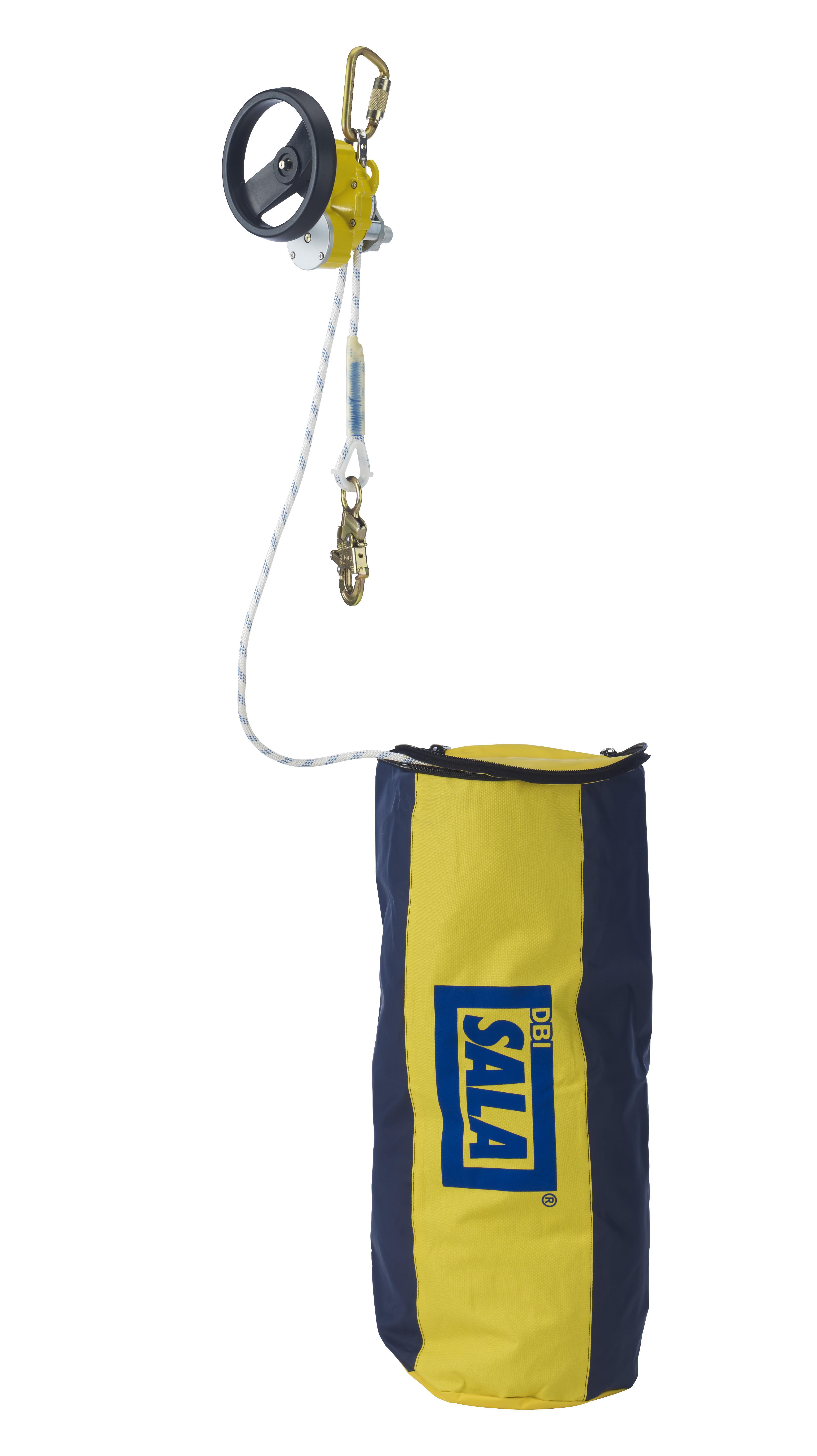

The 3M™ DBI-SALA® Rollgliss™ R550 Rescue and Descent Device offers the choice of controlled descent rescue, evacuation or the versatility of assisted rescue with lifting capabilities. This state of the art, fully automatic controlled descent device can be used for rescue and evacuation from heights up to 1,640 ft (500 m) for one user 310 lbs (141 kg) or 575 ft (175 m) for two users totaling 620 lbs (282 kg). It features 3/8 in (9.5 mm) super static kernmantle rope, and is configured with connecting hardware at each end of the lifeline to operate in both directions. During assisted rescue scenarios, a fallen worker can be attached to the R550 device, raised to a point that allows their fall arrest device to be removed, then lowered to the ground safely.

3M™ DBI-SALA®, 7100225832, Positioning Device, Controlled Descent, Series: R550, 200 ft Length, 620 lb Weight, Kernmantle Line, Aluminum Hardware, Yellow, Specifications Met: ANSI/ASSP Z359.9-2021, CSA Z259.2.3-12
